Commercial 3D Printing jewellery in your workshop just got easier.

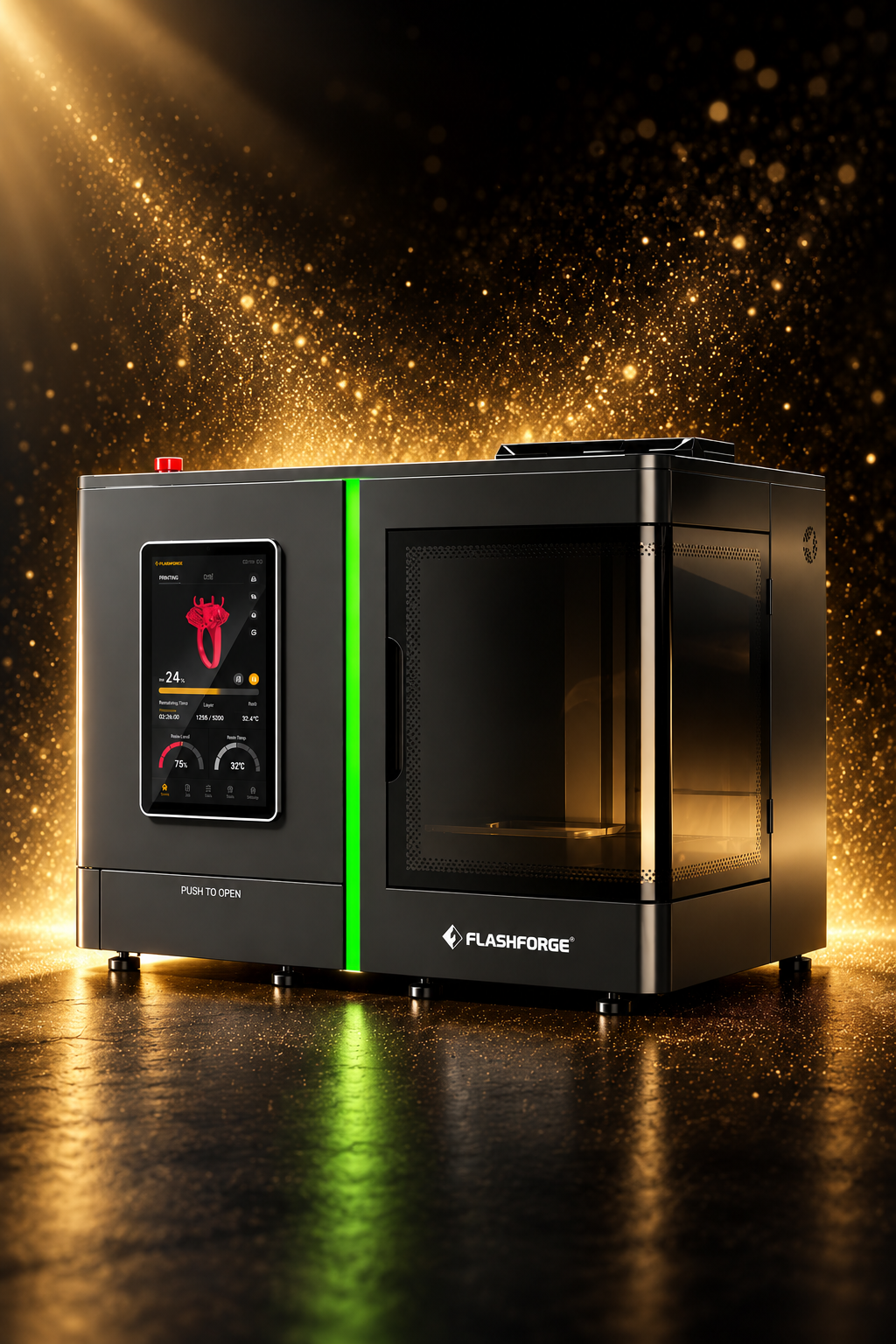

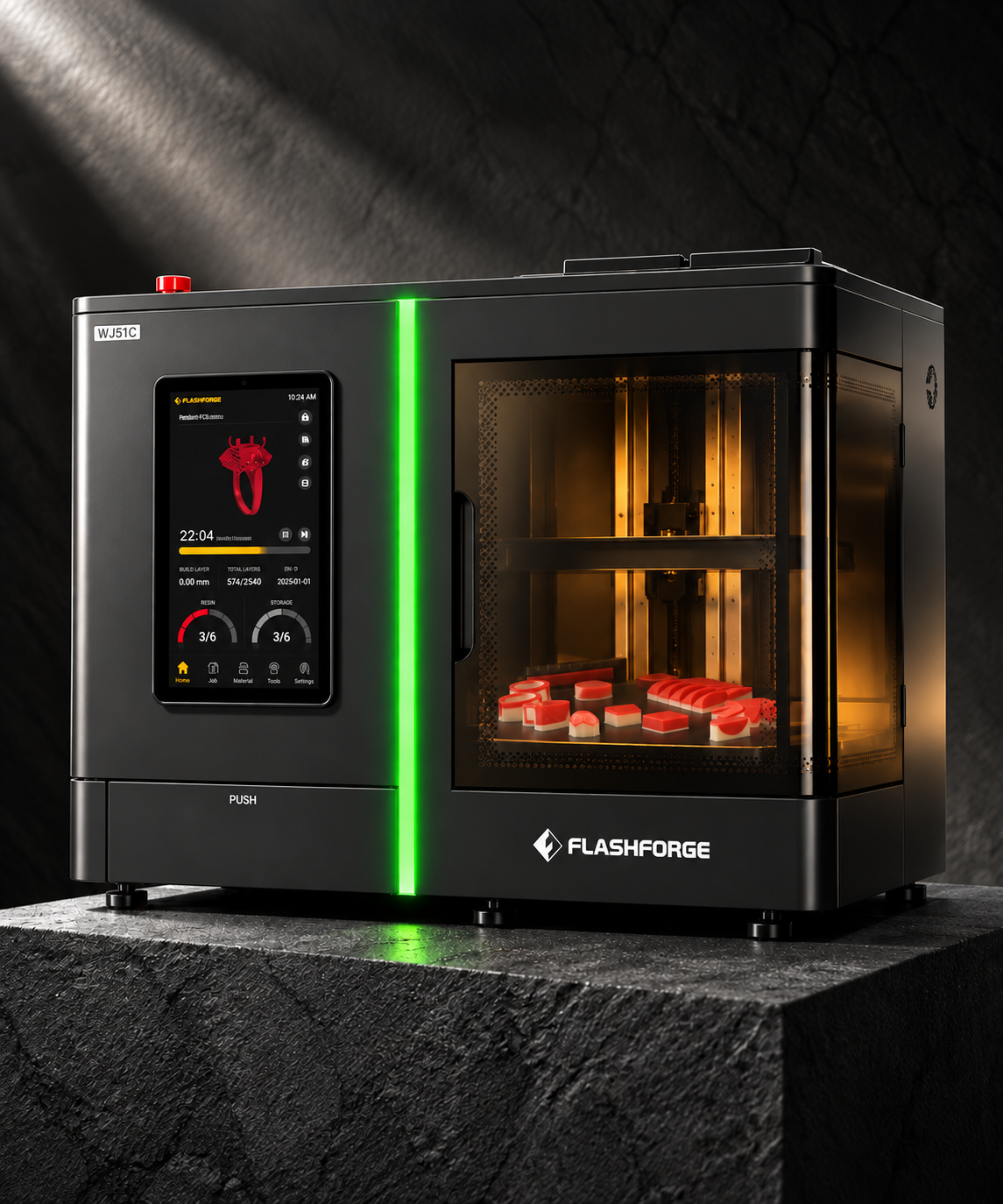

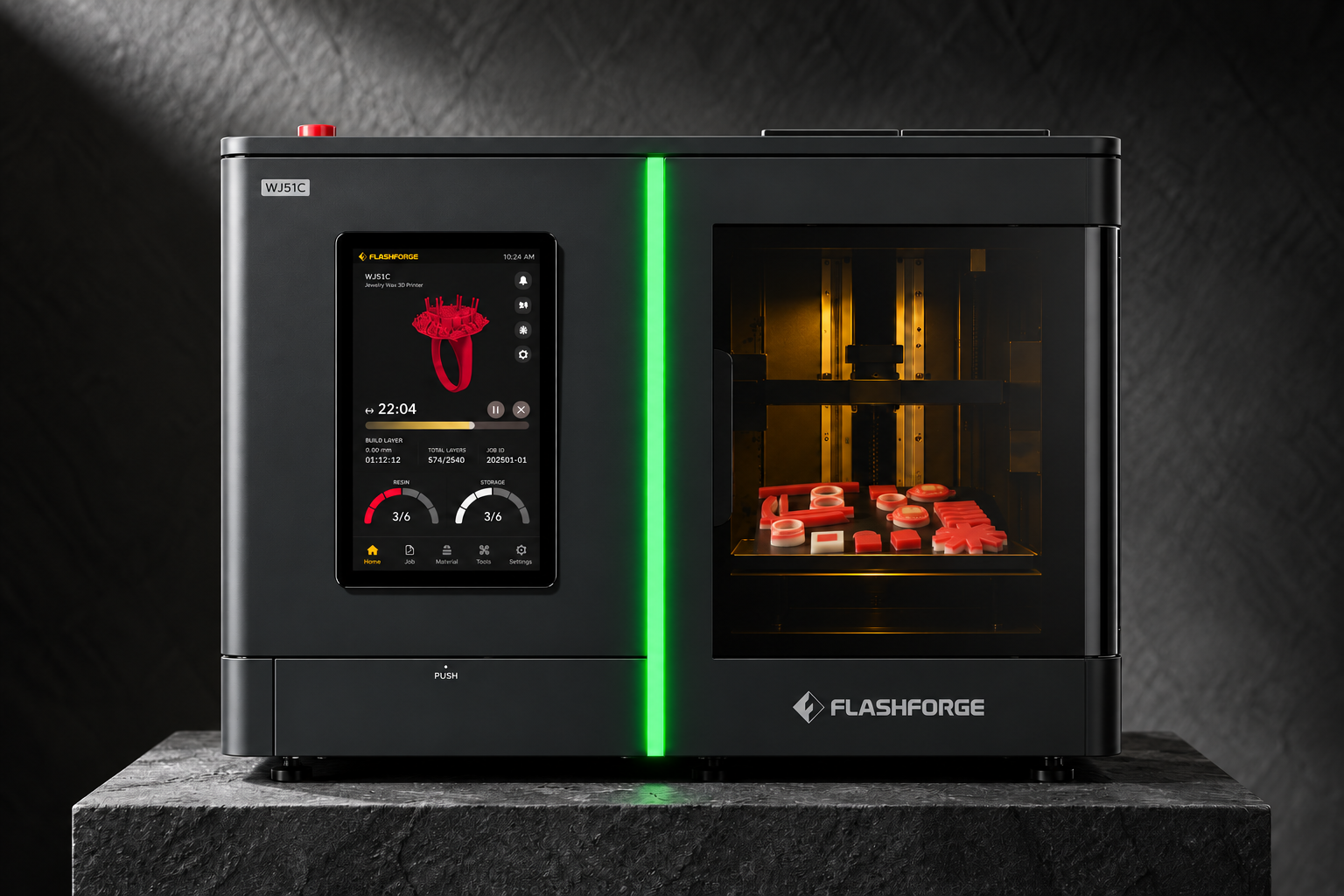

INTRODUCING the Flashforge WJ51C Jewellery Wax 3D Printer
Why WJ51C ?
Commercial Wax 3D Printing for Professional Jewellers
Evotech Pacific Systems is proud to offer the Flashforge WJ51C, a commercial jewellery-specific wax 3D printer designed for professional jewellers, jewellery manufacturers, casting houses and CAD production studios.
Rather than positioning the WJ51C simply as a compact 3D printer, we believe its real advantage is production capability. The WJ51C combines high-resolution MultiJet Printing technology with a generous jewellery production area, allowing multiple detailed wax patterns to be produced within a single print cycle.
With a 235 × 138 × 100 mm build volume, 15 μm layer thickness and true castable wax output, the WJ51C is designed for jewellers who need more than prototyping. It provides a practical solution for producing detailed, casting-ready wax patterns for custom jewellery, repeat production and small-batch manufacturing.
One Commercial Printer. Specifically for Jewellery.
Less Equipment Investment
Maintains industrial-grade performance with sleek table top design while reducing equipment investment.
Continious Production
24/7
Reduced Consumable Cost
Consumables materials have been reformulated to enable supply of on-demand wax usage, reducing waste and preventing degradation.
Wax Utilisation Rate
≥ 57%
Less Post-Processing Cost
Industrial-grade precision ensures smooth and detailed wax patterns, minimising manual post-processing work.
Wax Output
Up to
3kg/mo.
Optimized Software Algorithms
Optimised algorithms enhance fine details and ensure consistently higher print quality.
Upgraded Wax Materials
The new red wax blocks provide higher strength, better toughness, and lower risk of cracking.
Compact High-Performance Design
A more compact design improves space efficiency while delivering higher overall performance.
What’s Included?
WJ51C 3D Prototyping Machine
Includes
WJ51C 3D Printer
Starter Kit: 2 Boxes of Supporting Wax & 2 Boxes Of Building Wax
12-mOnth Warranty
International Flashforge Technical Support
Technical Specifications
Commercial wax 3D printing technology developed specifically for high-precision jewellery production and investment casting workflows.
WJ51C Printer Specifications
15 μm layer thickness
Dual-channel: 3.2 mm/hour
Wi-Fi expandable
Humidity: 30–70%
Wax Material Specifications
| Specification | FFWJ1200 | FFMS3200 |
|---|---|---|
| Material Type | Part Material | Support Material |
| Net Weight | 72 g / block | 180 g / block |
| Composition | 100% Wax | Wax Support Material |
| Colour | Red | White |
| Density @ 90°C | 0.79 g/cm³ | 0.79 g/cm³ |
| Melting Point | 68°C | 55°C |
| Softening Point | 63°C | — |
| Volumetric Shrinkage | 1.1% | — |
| Linear Shrinkage | 0.7% | — |
| Ash Content | <0.01% | — |
| Application | High-precision castable wax | Dissolvable support wax |
Get In Touch
If you're interested the WJ51C from the FlashForge please fill in the form with a few details and we'll review your message and get back to you within 24 hours.
