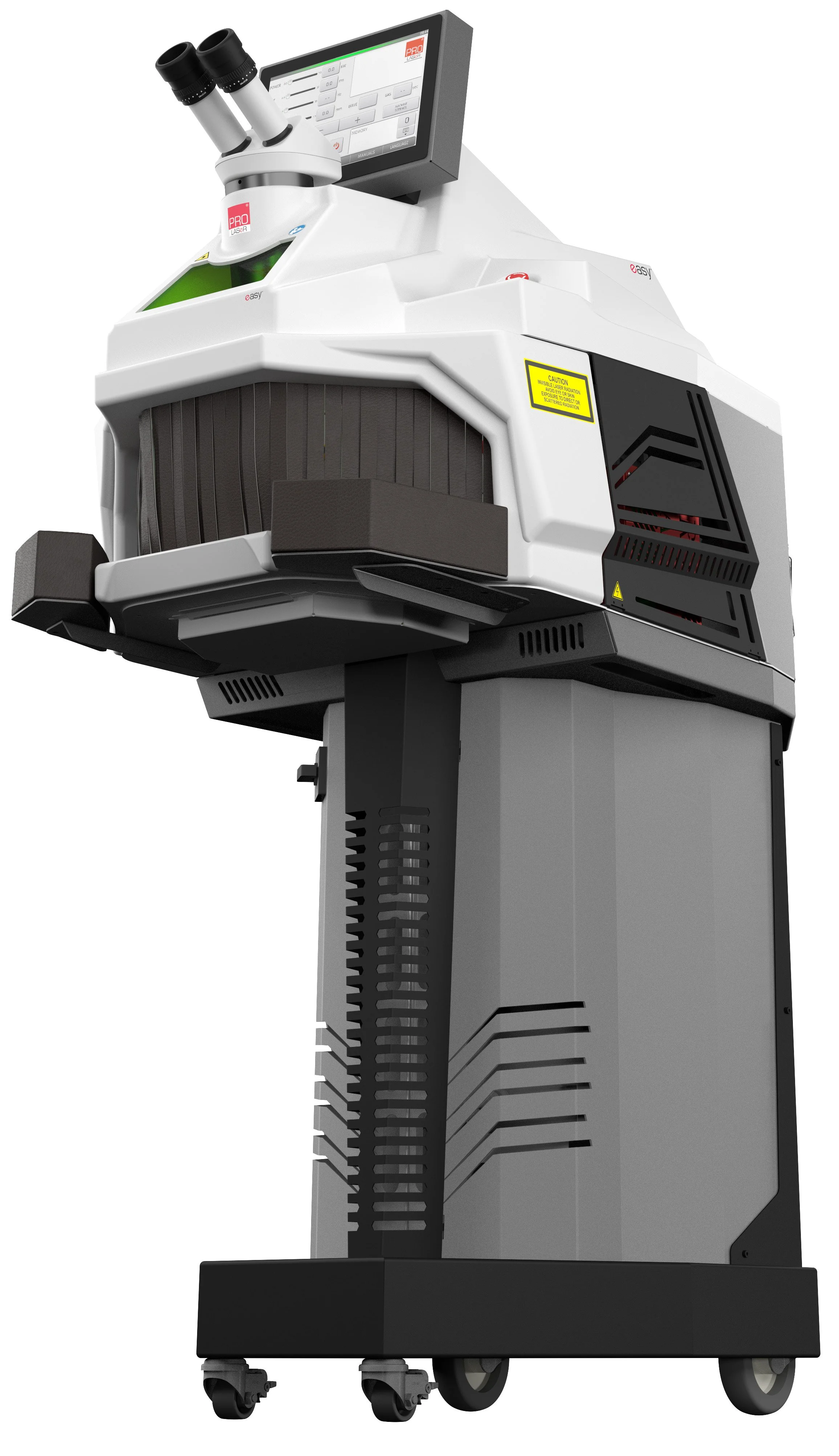

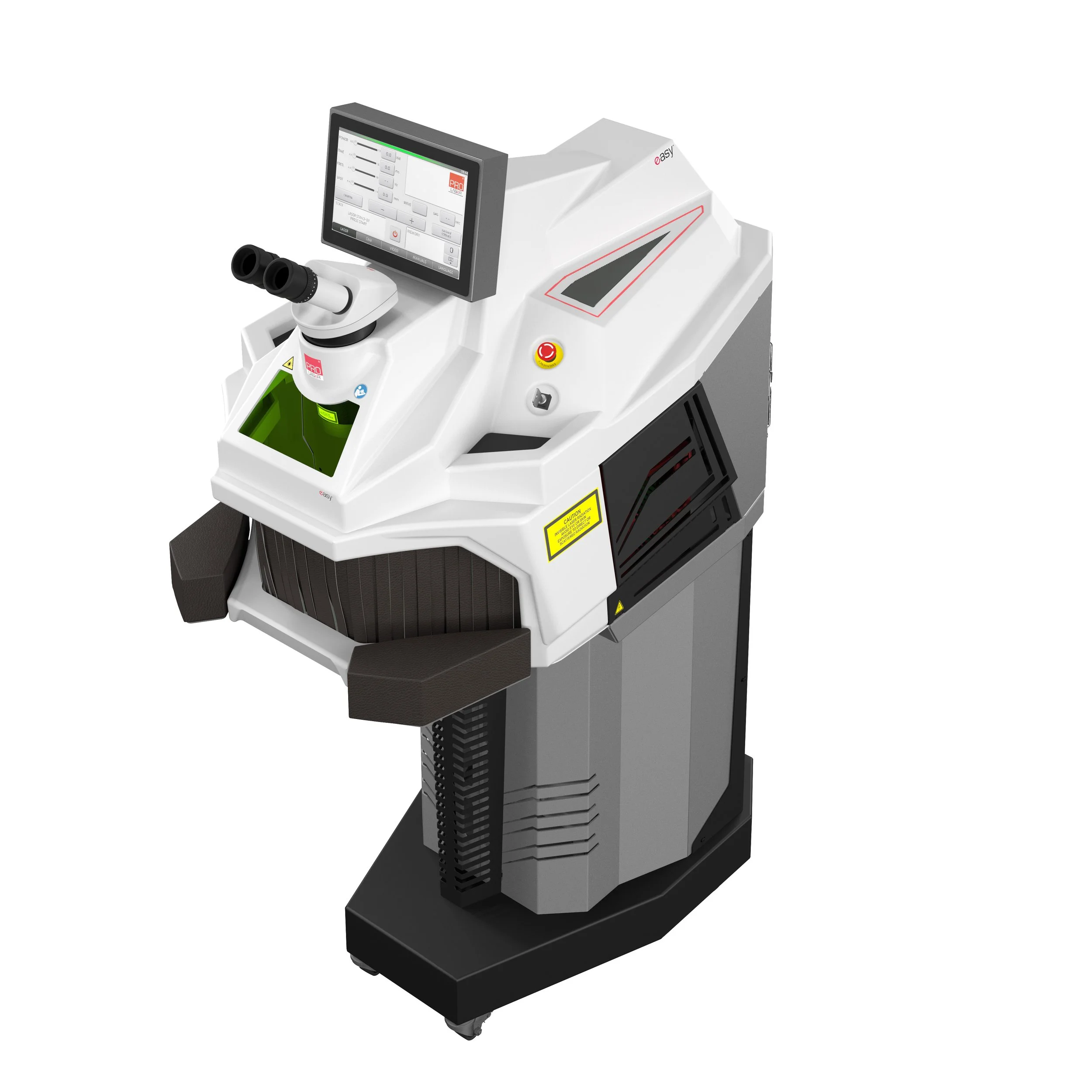

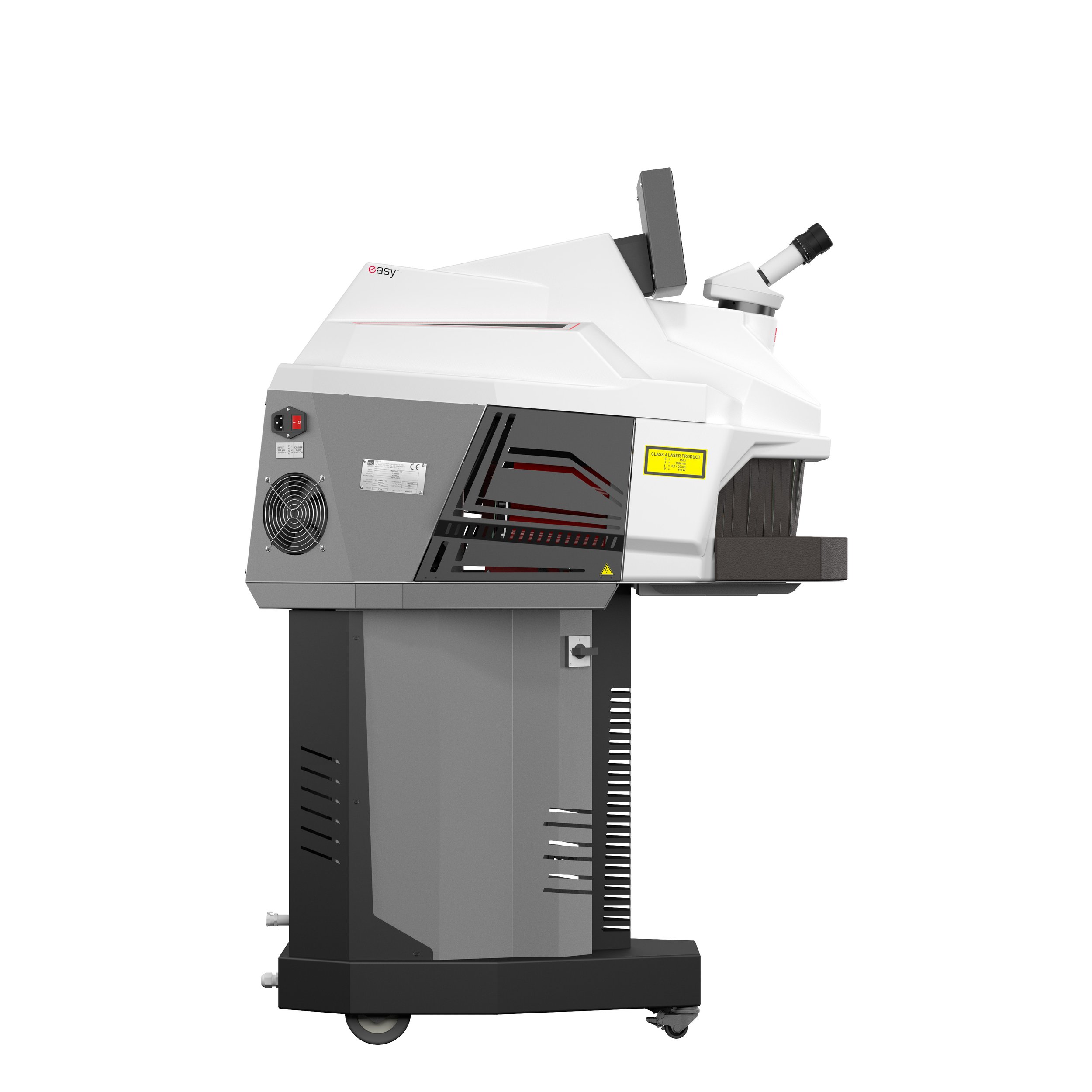

ProLaser PRIME
The Ultimate Laser Welder for Highly Reflective Metals
The ProLaser PRIME represents the most powerful system in the ProLaser jewellery welding range.
With 310 Joules of energy and 15.5 kW peak power, the PRIME is engineered for demanding applications where maximum power, stability, and precision are required.
Designed and manufactured in Italy, the PRIME combines
industrial-grade components with advanced optics and user-friendly controls to deliver unmatched welding performance.
Extreme Power for Difficult Metals
Highly reflective metals such as platinum, silver, and white gold require greater laser energy to weld effectively.
The PRIME provides:
310 Joules of laser energy
200W average power
15.5kW peak power
This ensures strong and consistent welds even on challenging materials.
Precision Welding Down to 0.1 mm
Advanced optical components allow the laser beam to be focused to a 0.1 mm spot size, enabling extremely fine welding work.
Perfect for:
Micro welding
Stone-set jewellery repairs
Precision manufacturing
Advanced User Interface
The PRIME features a 10” Full HD touchscreen control system with integrated camera and Leica microscope.
Operators can easily adjust welding parameters while viewing the weld in real time on the display.
Industrial Cooling System
The PRIME incorporates an enhanced radiator cooling system, allowing extended working sessions and maximum reliability during demanding workloads.
Technical Specifications
Laser Source: Nd:YAG
Wavelength: 1064 nm
Average Power: 200W
Peak Power: 15.5 kW
Maximum Energy: 310 Joules
Pulse Frequency: up to 50Hz
Pulse Duration: 0.1 – 20 ms
Spot Size: 0.1 – 2.0 mm
Control Interface: 10" Full HD touchscreen
Cooling System: Enhanced radiator forced air cooling
Power Supply: 220/230V single phase (20A)
Weight: 92 kg
Designed For
High-end jewellery manufacturing
Production workshops
Platinum and reflective metal welding
Heavy-duty laser welding applications
Pricing
ProLaser™ Welder Basic-E - Є20,450 excluding GST and local freight from Launceston
