Jewellery Laser Engraving Machines
How Do They Work?
Laser engraving is performed by optically amplifying a beam of light to deliver energy to the surface of the material being cut, with a large percentage of the light energy being converted into heat. The laser uses this high heat to efficiently vaporise portions of the material. Lasers are capable of cutting crisp, sharp lines at very specific depths, and they can even be used to cut intricate shapes in hard materials like sheet metal. Laser engraving is much faster than traditional engraving methods and has a much higher degree of accuracy and fine detail.
Designs are delivered to the laser engraver via computer, so the possibilities are nearly endless. With laser engraving, finer line widths are possible because there are no burs or bits doing the engraving, eliminating the need to replace consumables like burs in rotary engraving.
Laser engravers are probably the most versatile when it comes to the types of materials they can engrave. Fibre lasers can engrave hard materials (such as ceramic and metal). Laser engraving can also be used with certain semi-precious stones and gemstones due to its precision and low risk of damage to the materials.
Evotech pacific Systems has been appointed dealers for the red technology magic jewellery laser engravers for Australia & new zealand
Not only are the Red Technology Magic laser engravers powerful they are also compact and user friendly. Each model features the ability to engrave the inside and outside of rings and bangles as well as drawings, images, logos and photographs which can be further adjusted in included MagicArt7 software which is easy and intuitive for both jewellers and sales team members to use.
Red Technology currently have two Laser engraver options available - the L2 and the L3 Engravers - see more below;
L2
MAGIC™ MOPA Fibre Laser Marking Machine for Jewellery
Redt’s MAGIC-L2 is a third-generation compact MOPA fibre laser marking machine that is developed from the first- and second-generation marking machines. It is a unique, high-performing laser marking machine that offers exceptional laser marking functions despite its compact size. It is especially built compact to fit in any work spaces for convenient laser marking.
It is a fully automated machine that is designed with revolutionary functions and features. It has an outstanding marking performance that exceeds all other laser marking machines. It is built with a high-grade structure and a minimal, yet elegant and modern design. It features easy-to-use software for easy machine operation, and offers a variety of support tools and device options for fast and easy laser marking operations on various jewellery products.
L2 Highlights
Various Marking Options
MAGIC-L2's high-performing laser source and variable power options allow the use of the machine for various purposes such as colour marking and other various marking operations for items with different heights and surfaces.Various Rotary Marking Features
MAGIC™-L2's rotary marking features enable easy adjustment of the angle to the width and diameter of a ring when marking its inner/outer surface/edges.Elegant Design
MAGIC-L2's clean and modern yet minimal design is perfect for any work spaces!Safety Door
MAGIC-L2's safety door prevents users from being exposed to dust/fume and laser beams during marking.
L3
MAGIC™ fibre Laser Marking Machine - the most popular laser engraver for jewellers in Australia and New Zealand
-
MAGIC-L3 is a laser marking and cutting machine especially made for jewellery, to help jewellers utilise laser machines quickly and easily for their jewellery work. It has been developed by listening to the experiences of many jewellers and their specific demands regarding laser machines.
The main goal in the L3 development process was to offer an easy, fast, and convenient method of performing laser related jewellery work that is accessible to anyone, even novices. This goal has been achieved through the integration of automated features, simplicity of software, powerful performance, and intuitive design.
This 3rd-generation laser marking machine, L3, is mainly used within jewellery workshops to mark and produce jewellery products but is also very useful for performing marking services at a retail level thanks to its compact and modern design, low noise levels whilst in operation and compact size.
-
Designed for Jewellery Marking and Cutting
MAGIC-L3 is a laser marking machine majorly used in the jewellery industry to make complex jewellery work simple yet precise. It is especially designed for jewellers to make their cutting and marking work on jewellery easy and fast with ensured high quality results.
Can Cut Through Sheet Metal
Featured in the 60W & 100W L3 models.
The 60W L3 laser Engraver can cut through sheets of metal up to approximate thickness of 1.5mm and the 100W L3 Laser Engraver through sheets of metal up to approximate thickness of 2mm.
Fully Automatic Laser Marking Machine
MAGIC-L3 comes with a variety of automatic features that enable easy operation of the machine. Anyone is able to use this machine as it is fully automated, and features a user-friendly software. It ensures easy and fast marking and cutting with automatic operation.
Modern Design Style Suitable for Retail Spaces
MAGIC-L3 is perfect for in-store use. Its user-friendly features, high-speed marking performance, exceptional marking quality, and its unique and modern design perfectly suits retail spaces so that you can offer a more personalised service for your clients.
MagicArt7 Software
L3 Magic Laser Engravers include the powerful MagicArt7 Engraving software which is easy and intuitive for both jewellers and sales team members to use.
Functions
Designed for jewellery
Black, White and Colour marking
Camera positioning and auto focusing
60W/100W high power cutting
Load-N- Go docking station
Quiet operation thanks to an adaptive cooling system
Easy and quick change between pendant and ring modes
Option To Purchase Additional Fixtures
Medal clamp
Auto tilt rotary clamp
L-type clamp
Anti-curling clamp
Honeycomb table
Blower set
-
-
30W
Price: $9,200.00 USD excluding GST and local freight from Launceston.
60W
Price: $10,300.00 USD excluding GST and local freight from Launceston.
100W
Price: $12,000.00 USD excluding GST and local freight from Launceston.
optional fixtures
Anti-curling Clamp
Used for holding a thin plate in place during cutting process.
Price: $300 USD excluding GST and freight.
Models: L3 Laser Engravers
Medal Clamp
Used for holding a thin plate in place during cutting process.
Price: $300 USD excluding GST and freight.
Models: L2 and L3 Laser Engravers
Honeycomb Table
Used for holding a thin plate in place during cutting process.
Price: $80 USD excluding GST and freight.
Models: L3 Laser Engravers
Pendant Clamp (Self-centering)
Used for holding materials that come in a variety of shapes in place.
Price: $250 USD excluding GST and freight.
Models: L2 and L3 Laser Engravers
L-Type Clamp
Used for holding a material with an inclined surface in place, or when manually marking a ring.
Price: $250 USD excluding GST and freight.
Models: L2 & L3 Laser Engravers

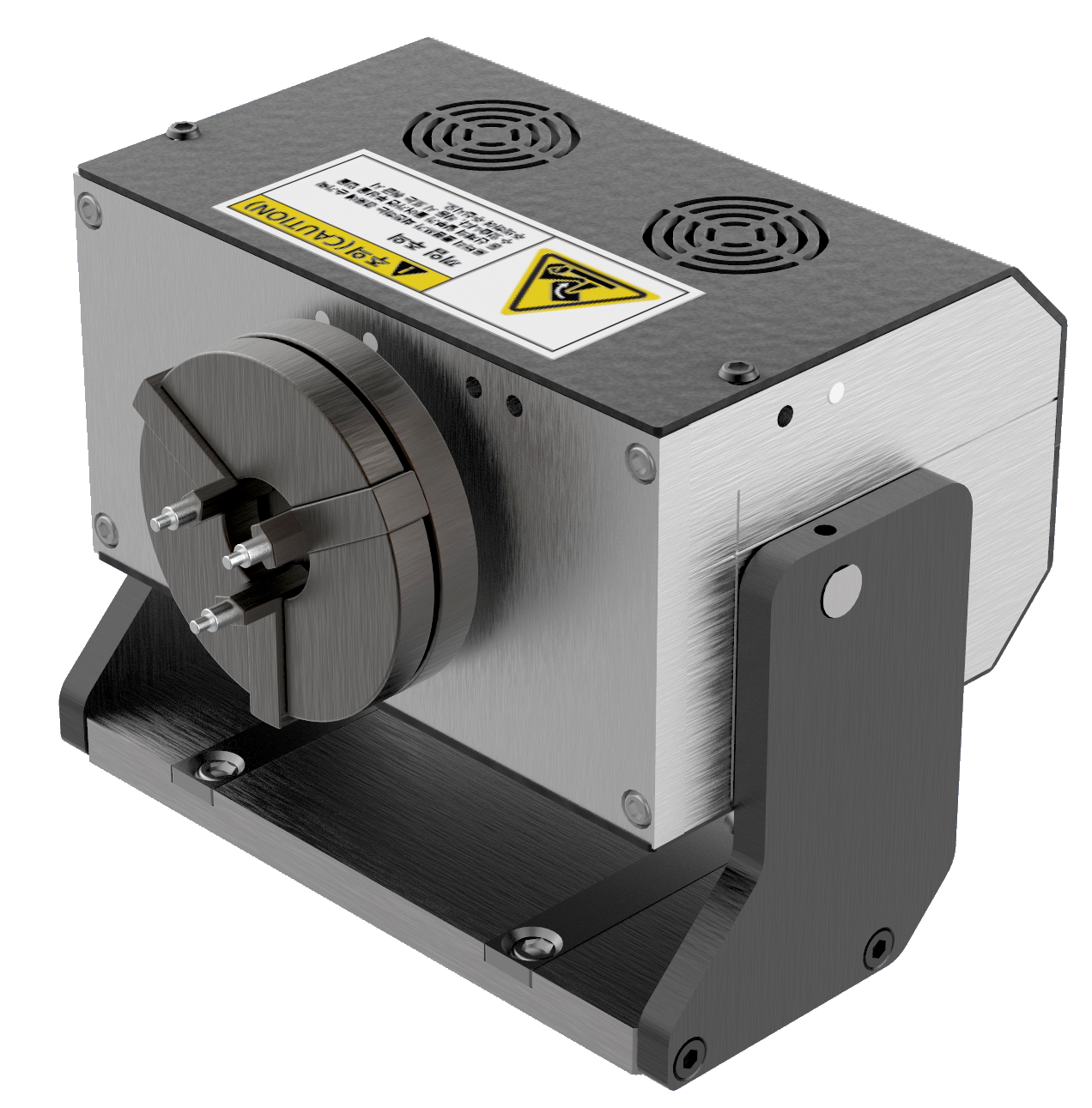

Auto Tilt Rotary Clamp (L3 only)
Used for holding rings in place.
Price: $700 USD excluding GST and freight.
Models: L3 Laser Engravers
Manual Rotary Clamp (L2 only)
Used for holding rings in place.
Price: $700 USD excluding GST and freight.
Models: L2 Laser Engravers
BLOWER UNIT
Used for extracting fumes from within the enclosed cabinet.
Price: $320 USD excluding GST and freight.
Models: L2 and L3 Laser Engravers
